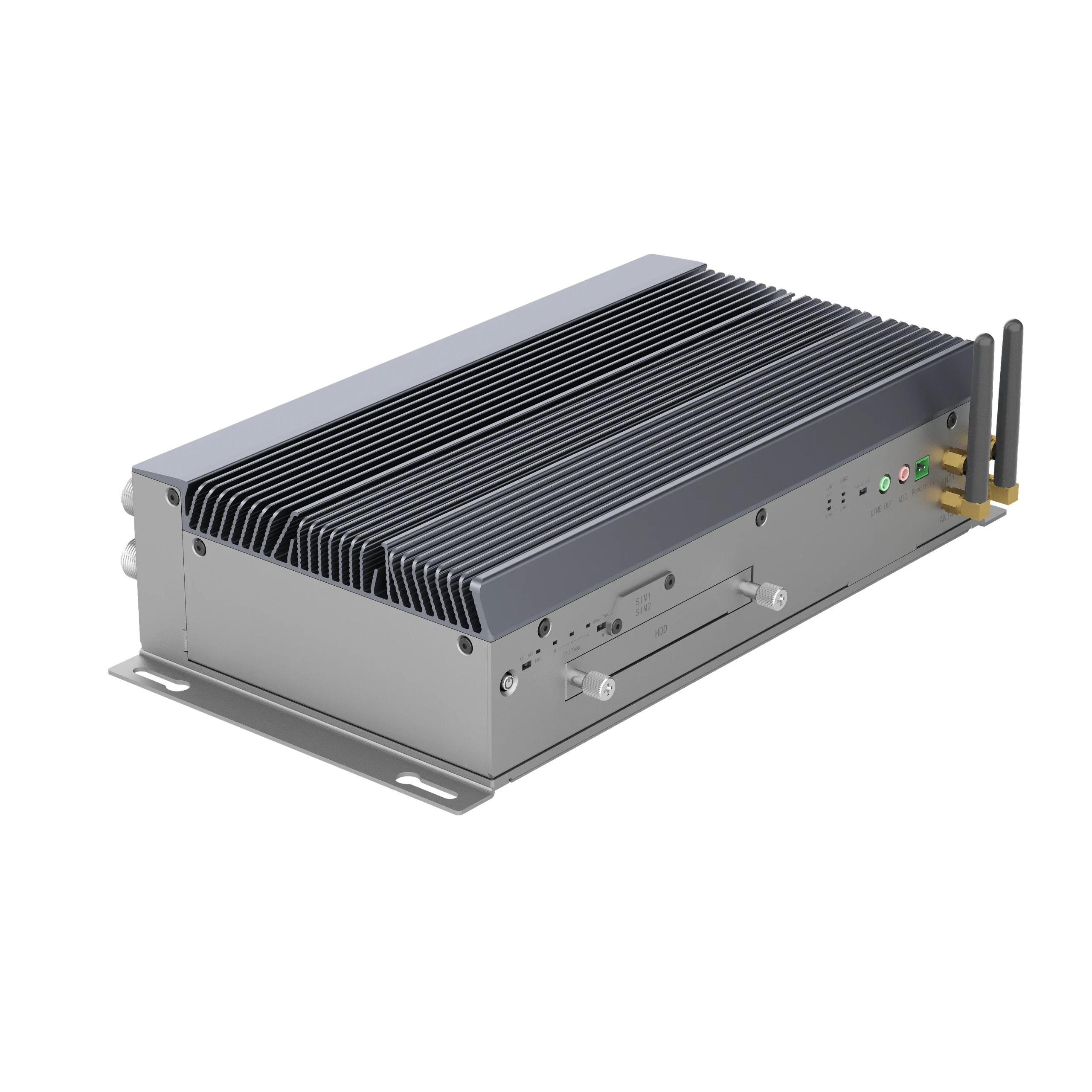

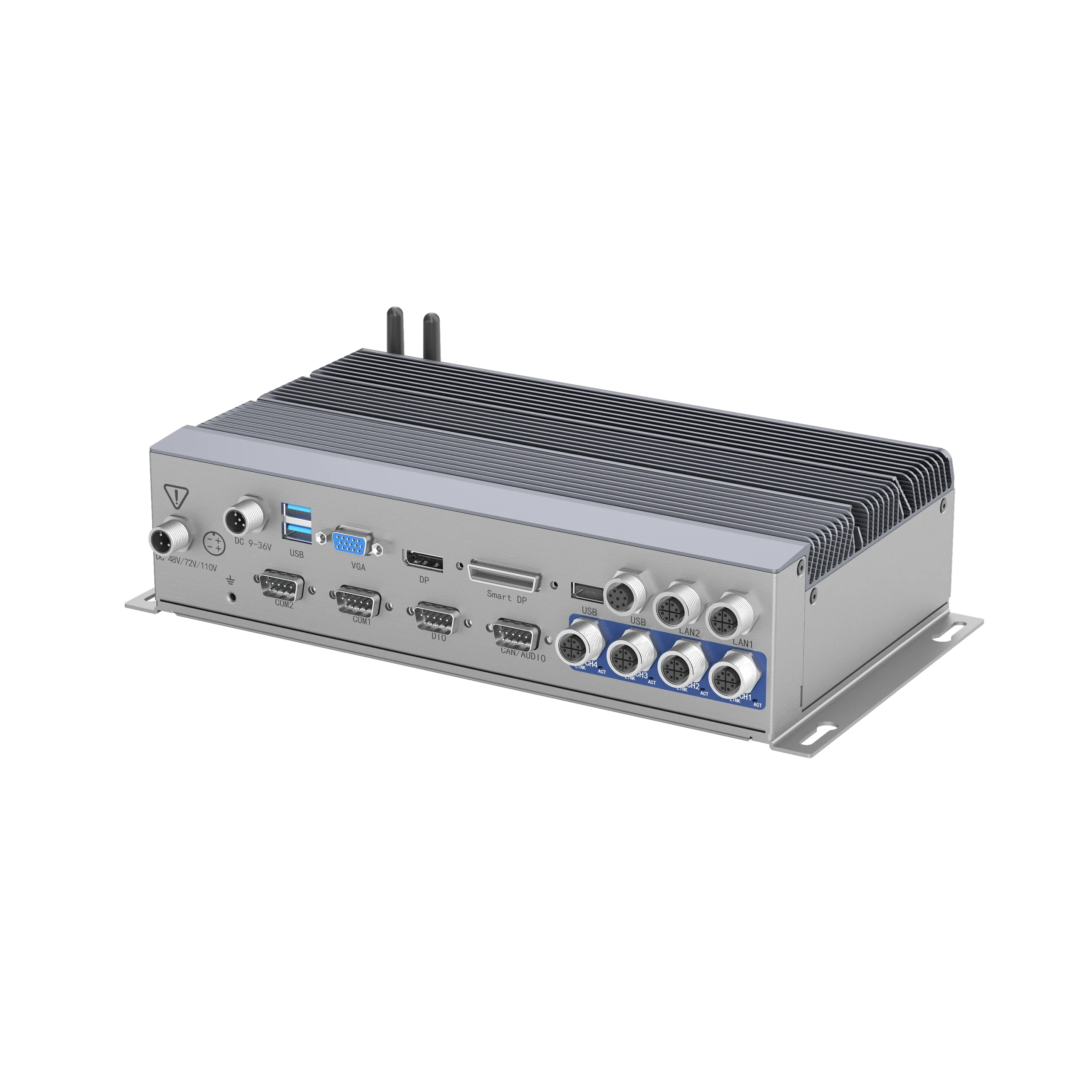

SIGM-3250 adalah komputer tangguh dan tanpa kipas untuk kendaraan, ditenagai oleh prosesor Intel® Skylake/Kabylake-U dan memori DDR4 dual-channel (On-board + SODIMM) dengan dukungan hingga 16GB pada kecepatan 2133MHz. Dilengkapi dengan tiga antarmuka tampilan (DP+VGA+Smart Display), 2LAN, 4POE, 5USB, 4Mini PCIe, mendukung fungsi nirkabel seperti dual 4G LTE/Wifi/BT/GPS, 2COM dengan fungsi isolasi, DIO terisolasi 8-bit, opsional 2CAN. Terdapat juga slot mSATA, dan 2.5-inch SATA3.0 yang mudah diganti untuk penyimpanan. Bersertifikasi kendaraan E-mark, bersertifikasi EN50155, cocok untuk aplikasi sistem transportasi cerdas (ITS), kendaraan darat, dan kendaraan kereta api
Product Video
Fitur
Spesifikasi Lengkap
Data Sheet
Fitur
- Aluminum chasiss, Fanless & Rugged design
- Intel® Skylake/Kabylake-U CPU
- 2-Ch DDR4, On-board 4/8GB+SODIMM, up to 16GB
- 1*DP, 1*VGA, 1*Smart Display, three displays
- 2*LAN, 4*POE(802.3af), 5*USB
- 2*Iso.COM, 8-bit Iso. DIO, optional 2*CAN
- 4*Mini PCIe(opt. 1*mSATA), support GPS/WiFi/4G
- EN50155, E-Mark certification, support TPM2.0
- Railway power DC 48/72/110V
- Optional DC 9~36V, ITPS power management
Spesifikasi Lengkap
System | CPU | I3-6100U | I3-7100U | I7-6500U | I7-7500U | |
| Cores | 2 | 2 | 2 | 2 | ||
| Threads | 4 | 4 | 4 | 4 | ||
| Frequency(GHz) | 2.3 | 2.4 | 2.5 | 2.7 | ||
| System Memory | 2-ch DDR4, support 2133MHz, on board 4/8GB+1*SODIMM, up to 16GB | |||||
| Expansion | 2*Mini PCIe with PCIe X1+USB signal, 2*SIM slot, support 2*4G/LTE/Wifi/BT/GPS 1*Mini PCIe with SATA+USB signal，support mSATA 1*Mini PCIe with PCIe+USB signal, when using 2*CAN, This slot is occupied | |||||
| Intel Graphics | Intel Gen.9 HD Graphics, DP max. res. 4096*2304@60Hz, Smart Display max. res. 1920*1200@60Hz, VGA max. res. 1920*1200@60Hz, support 3 displays | |||||
| Audio | Realtek ALC662VD controller, Audio out and MIC, support 5.1 channel | |||||
| LAN | 6*Intel I210AT PCIe Gig. Ethernet, M12 connector, four of them with POE function, 802.3af (15.4W) | |||||
| Storage | 1*2.5″ HDD/SSD bay, 1*mSATA(SATA+USB) | |||||
| DIO | 4-ch input/4-ch output, isolated (DB9), 2.5KV opto-isolated input(H: 5-24V, L: 0-1.5V) , opto- isolated output(200mA） | |||||

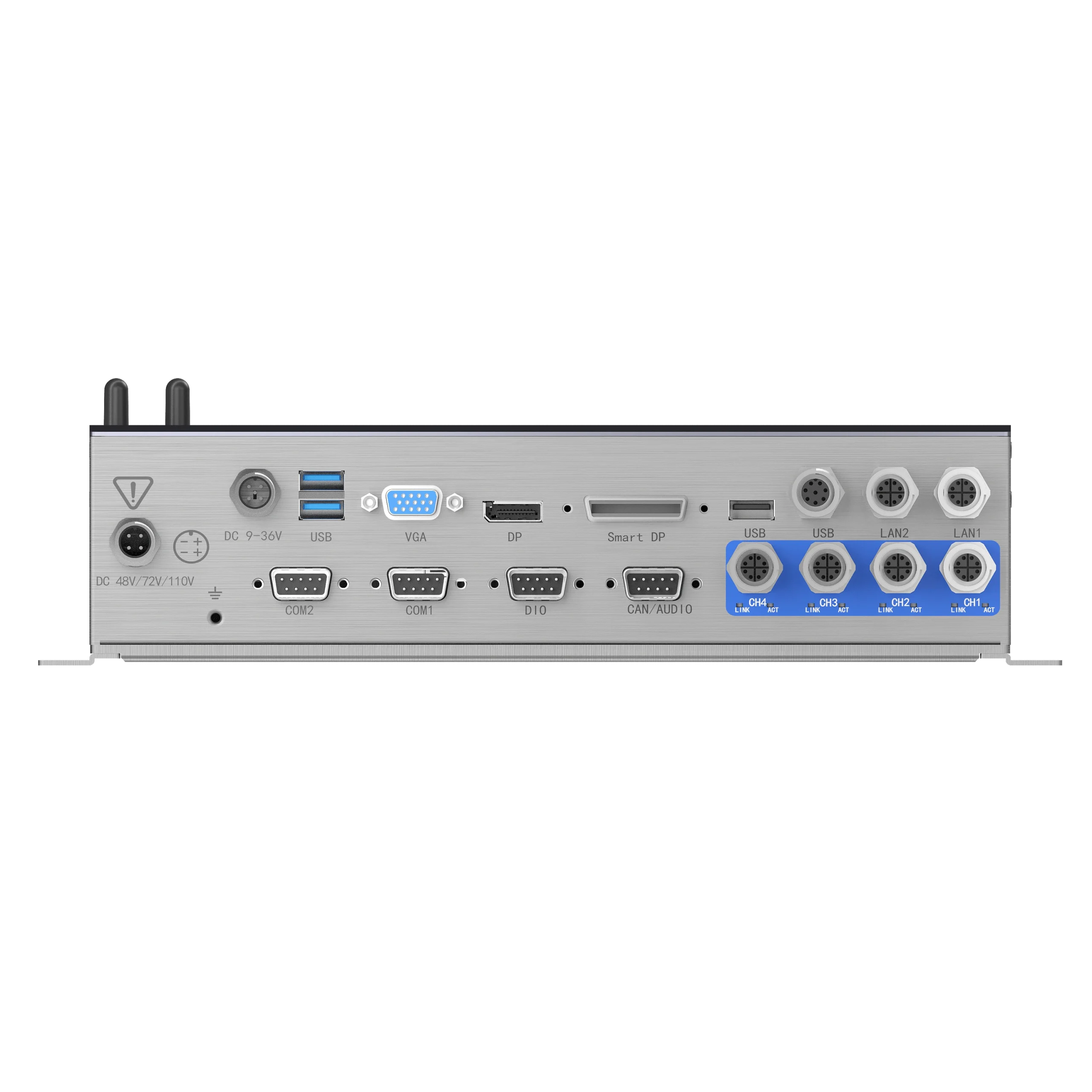

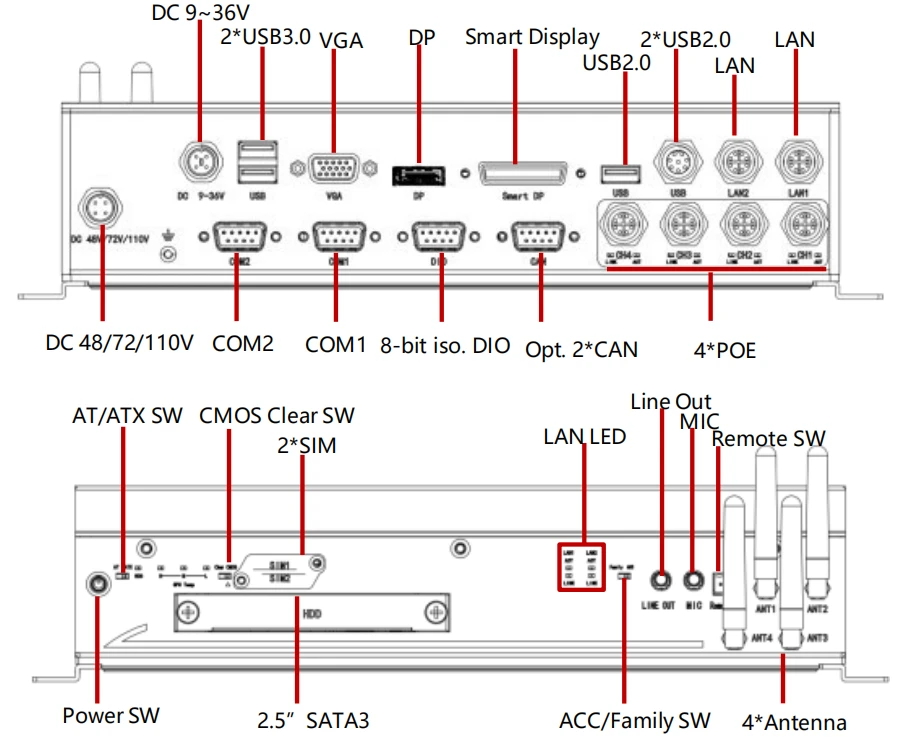

| I/O ports | 2*Gig-LAN (M12 X-coded), 4*Gig-LAN, with POE 802.3af (M12 X-coded) 2*USB3.0 (Type A); 1*USB2.0 (Type A); 2*USB2.0 (M12) 4-ch input/4-ch output, isolated (DB9 male)，2*SIM slot 1*RS232 isolated (DB9 male), 1*RS485 isolated (DB9 male), Optional 2*CAN 2.0(DB9 male) 1*Audio-out & 1*MIC (3.5mm phone jack) 1*DP+1*VGA+1*Smart Display | |||||

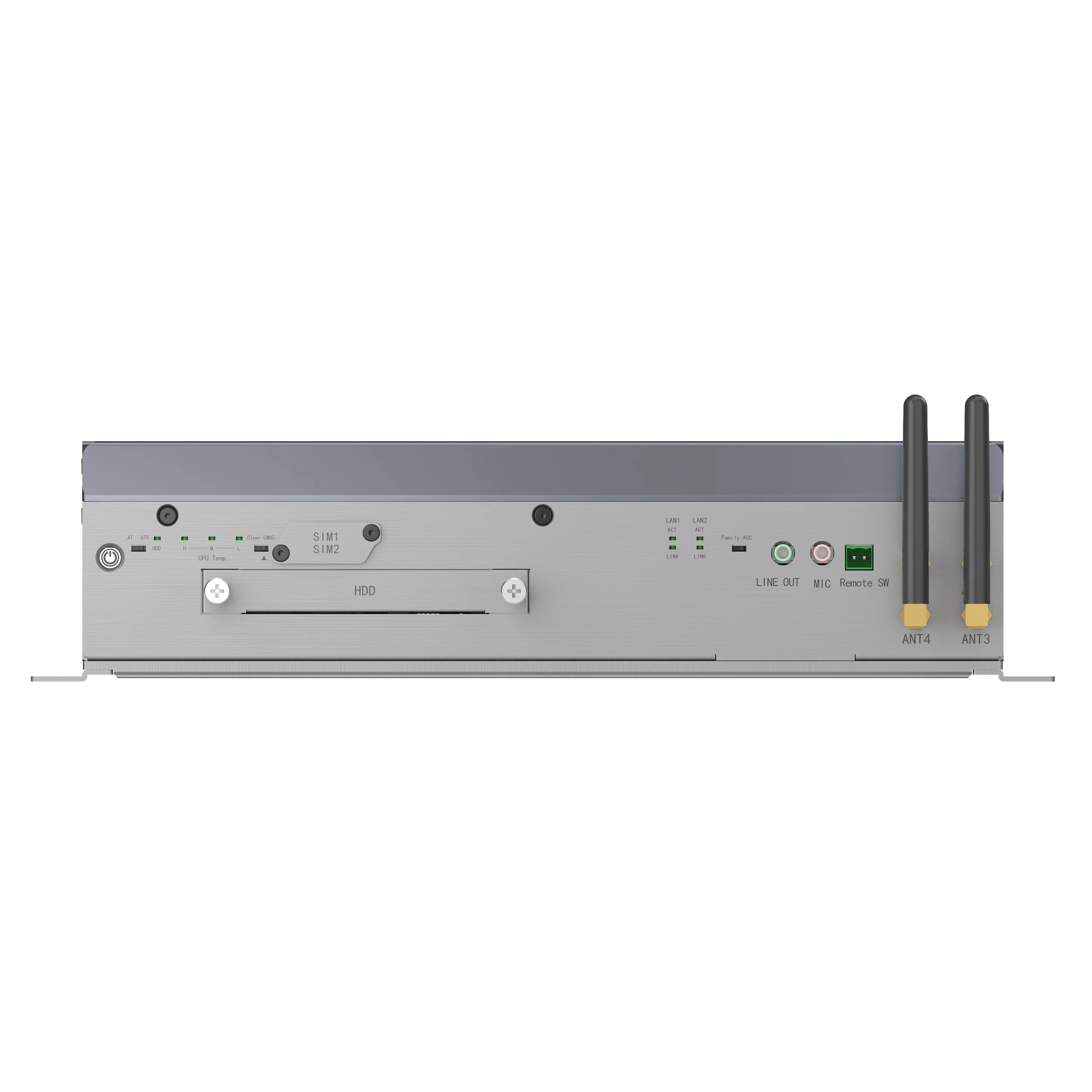

| LED | 1*Power LED, 1*HDD LED, 3*CPU Temp. LED (Red is warning, yellow is High, Green is normal) 3*LAN LED (ACT/LINK) | |||||
| Control SW | 1*Power button, 1*Remote SW signal, 1*AT/ATX SW, 1*Clear CMOS SW, 1*ACC/Family select SW | |||||
| Power Supply | DC 48/72/110V input, 4-pin connector(M12), TDP: 12V/2.33A(I5-6200U, 8GB) Optional DC 9~36V input, 5-pin connector (M12) | |||||
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second | |||||
| OS Support | Windows7, Windows 10, Linux Fedora, Ubuntu (Note: Kabylake-U don’t support Windows 7 OS) | |||||
Mechanical | Structure | Aluminum chassis, Stainless steel frame | ||||
| Color | Silver & Grey | |||||
| Mounting | Desktop Mounting | |||||

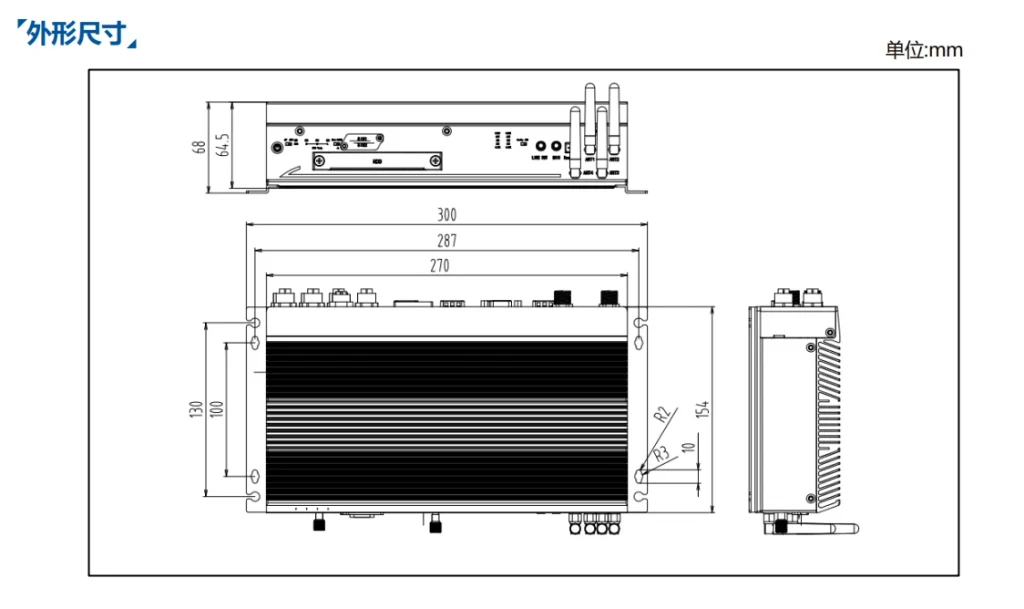

| Dimension | (W*H*D)：270*154*64.5mm | |||||
| Net weight | 3.2Kg | |||||
Environmental | Operating temperature | EN50155 TX: -40~70℃ | ||||
| Storage Temperature | -40°C~85°C | |||||
| Storage Humidity | 10~90%@40°C, Non-condensing | |||||
| Vibration | MIL-STD-810G, EN50155 | |||||
| Shock | MIL-STD-810G, EN50155 | |||||
| Certification/EMC | EN50155, E-Mark, CE/FCC Class B | |||||
