Paper Ink Rub Resistance Machine is applicable to testing ink layer of materials like labels, folding cartons, corrugated boxes, etc.
Paper Ink Rub Resistance Machine can do dry or wet rubbing test, discoloration test, paper fuzzy test, and special friction test. It can help users to analyze the reason of lower abrasion assistance, ink layer falling-off, lower printable of PS board, and adhesion of coating layers of other products.
1. Specifications

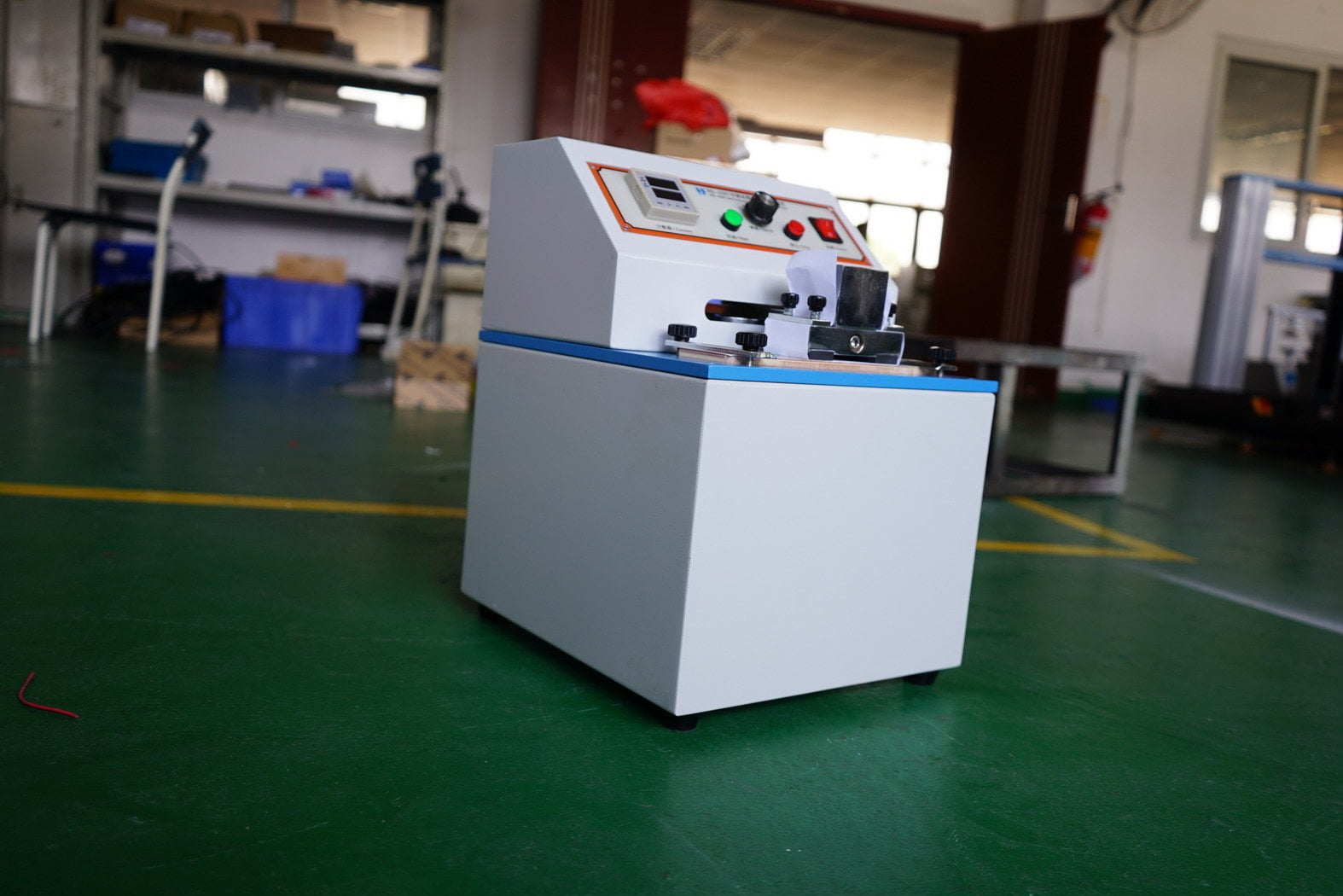

Paper Ink Rub Resistance Machine
2. The Specifications:
| Paper Ink Rub Resistance Machine | |
| Model | HD-A508 |
| Operating Method | Microcomputer Control |
| Display | LCD |
| Specimen Size | Minimum Size: 230×50 mm |
| Friction Speed | 43 times/min ( 21,43,85, 106 times/min, adjustable) |
| Friction Load | 908g ( 2LB), 1810g (4 LB) |
| Friction Stroke | 60 mm |
| Friction Area | 50×100 mm |
| frequence Setting | 0~9999 times, auto-shutdown |
| Outside Dimension (L×W×H) | 330×330×410 mm |
| Weight | 35 Kg |
| Power | AC220V, 60W |
| Design Criteria | JIS-507-1, TAPPI-UM486, GB7706, ASTM D5264 |
