Paper Tear Strength Tester is falling pendulum tear paper testing equipment with an analog display for the determination of the average force required to propagate a single-rip tongue-type tear starting from a cut in paper, cardboard, plastics, non-woven, and woven fabrics, with proper configuration.
Paper Tear Strength Tester meeting ASTM standards are suitable for most fabrics including woven, layered blankets, napped pile, blanket, and airbag fabrics, and provided the fabric does not tear in the direction crosswise to the direction of the force application during the test. The fabrics may be untreated, heavily sized, coated, resin-treated, or otherwise treated. This test method covers the measurement of the average force required to propagate a single-rip tear starting from a cut in a non-woven fabric using a falling-pendulum (Elmendorf) apparatus.
Specifications
Paper Tear Strength Tester
1. Accurate, low-cost, and high quality
2. Suitable for fabrics and textile
3. ASTM D 1424
The Specification
Paper Tear Strength Tester
| The scope of tear strength | A:0~32N(By installing a small hammer A) |
| B:0~64N(Significant increase in heavy hammer to install B) | |
| Tear length | 43mm |
| Incision length | 20±0.2mm |
| Sample size | 100(L)×63(W)mm |
| Force accuracy | ≤±1 |
| Outside dimension | 400(L)×210(W)×395(H)mm |
| Weight | About 30Kg |
The Feature:

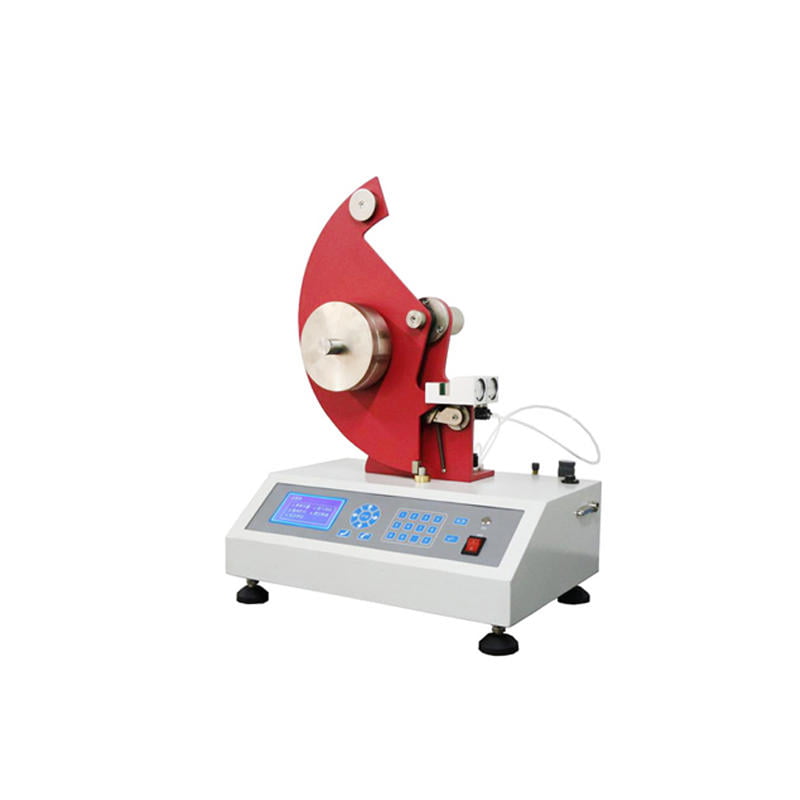

Digital Tear Strength Tester F is of simple operation, reliable performance, and advanced technology, and the test data is digitally displayed, test report is made by the printer. It is ideal and necessary equipment for the scientific research units, paper companies, packing industry, and the quality inspection department.
