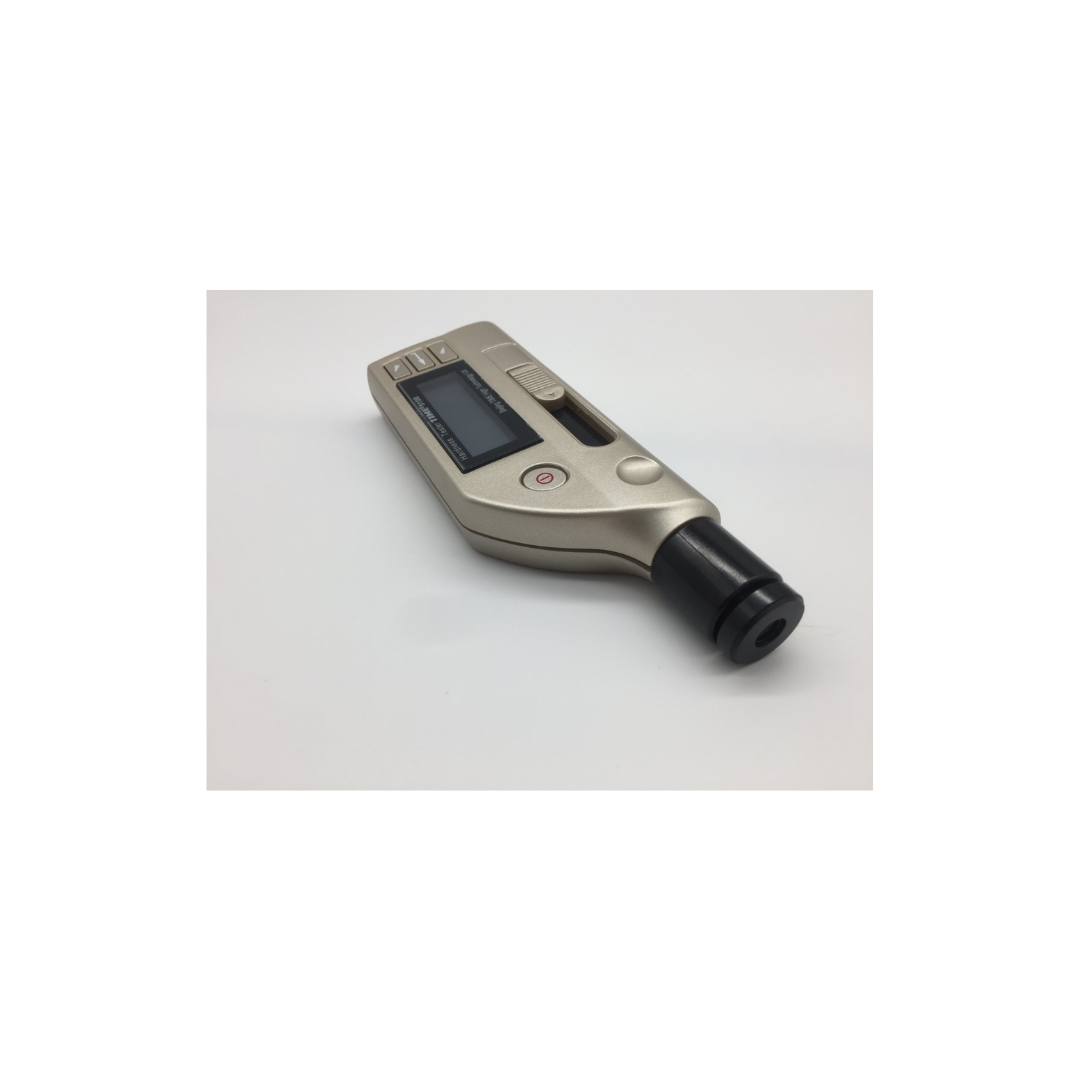

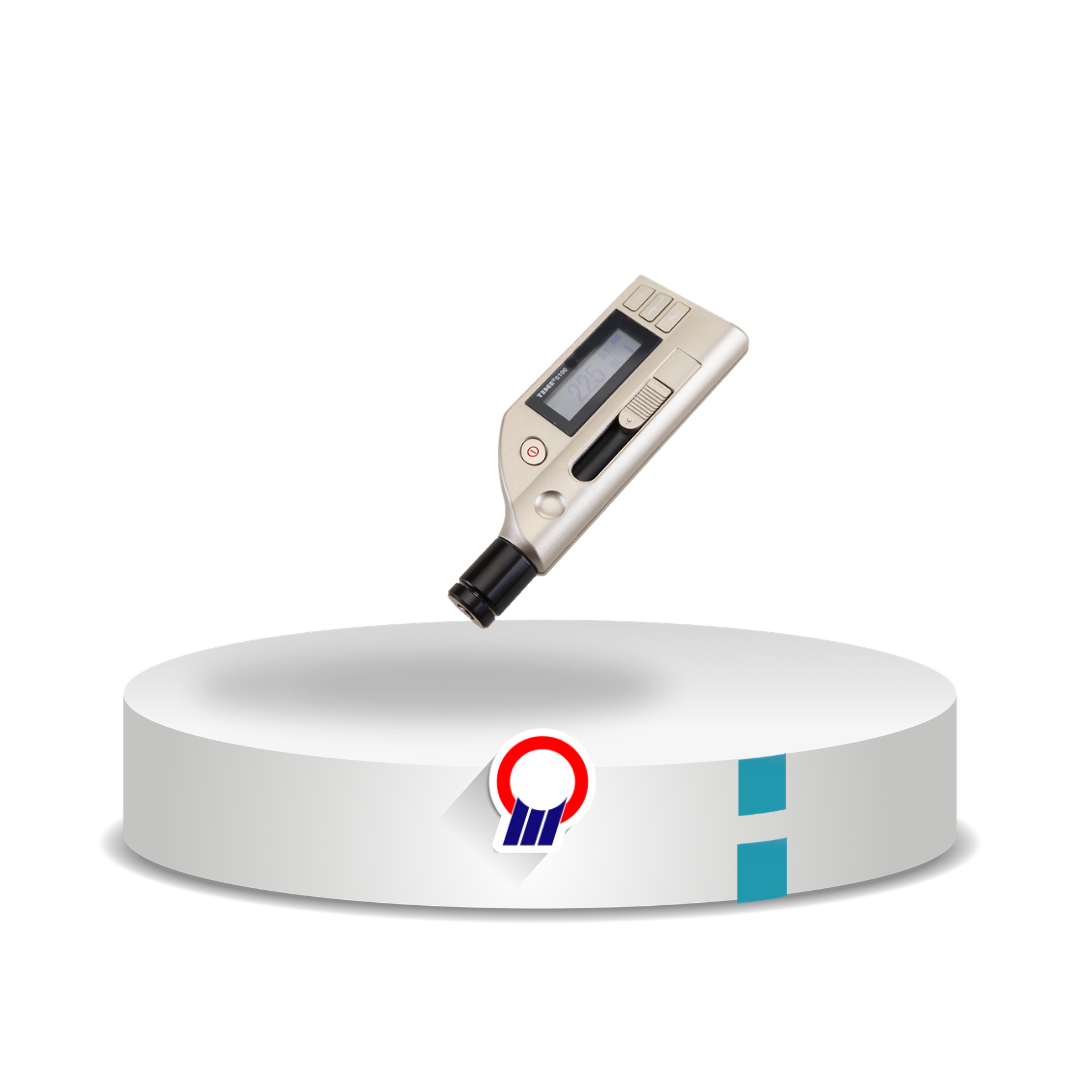

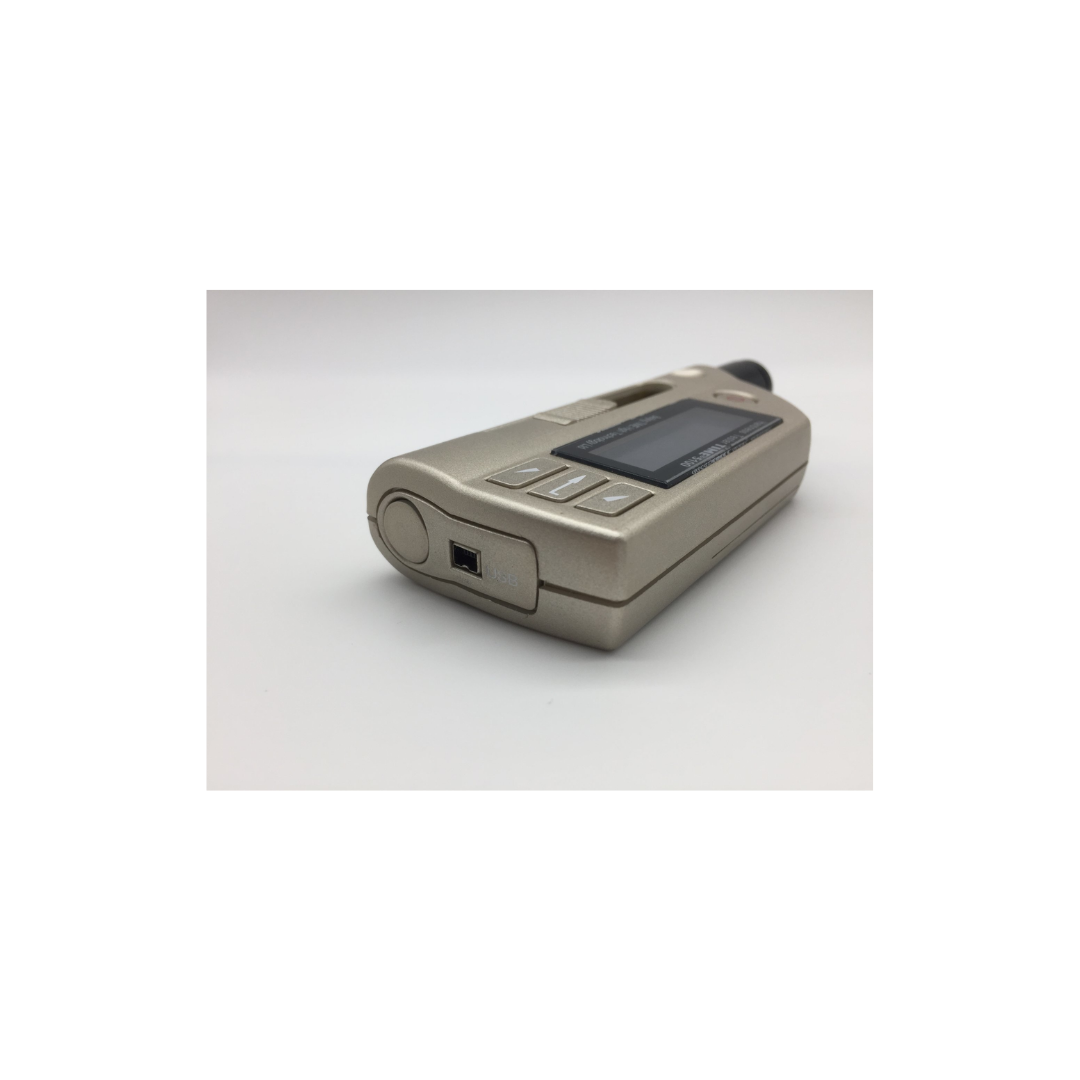

Pen Type Hardness Tester TIME® 5100/5102/5104 adalah alat uji kekerasan berbentuk pena dengan harga terjangkau. Alat ini cocok digunakan untuk pengujian kekerasan material logam secara cepat, terutama untuk pengujian di lokasi (on-site) pada komponen besar yang tidak bisa dipindahkan.
| Model | TIME ® 5100 | TIME ® 5102 | TIME ® 5104 |
|---|---|---|---|
| Impact Device | D integrated | C integrated | DL integrated |
| Hardness Scales | HLD, HB, HRC, HRB, HV, HS | HLC, HB, HRC, HRB, HV, HS | HLDL, HB, HRC, HRB, HV, HS |
| Accuracy | ±6HLD (760 ±30HLD) | ±12HLC | ±12HLD |
| Memory | 270 average readings in 9 group files | ||
| Output | RS232 to printer | ||
| Min. Surface Roughness (Ra) | 1.6 μm | 0.4 μm | 1.6 μm |
| Max. Work Piece Hardness | 960HLD | 960HLC | 950HLDL |
| Min. Radius (Convex/Concave) | Rmin = 50mm (support ring Rmin=10mm) | Rmin = 11mm (with support ring) | Rmin = 10mm (support ring Rmin=10mm) |
| Min. Work Piece Thickness (Coupled) | 5mm | 1mm | 5mm |
| Min. Thickness of Hardened Layers | 0.8mm | 0.2mm | 0.8mm |
| Indentation Depth | Impact devices data | ||
| Continuous Working Time | 8h (without backlight) | ||
| Power | AAA 1.5V batteries | ||
| Operating Temperature | 0~40℃ | ||
| Dimensions (mm) | 155×55×25 | 160×60×25 | 215×60×25 |
| Weight (g) | 180 | ||
