Spesifikasi

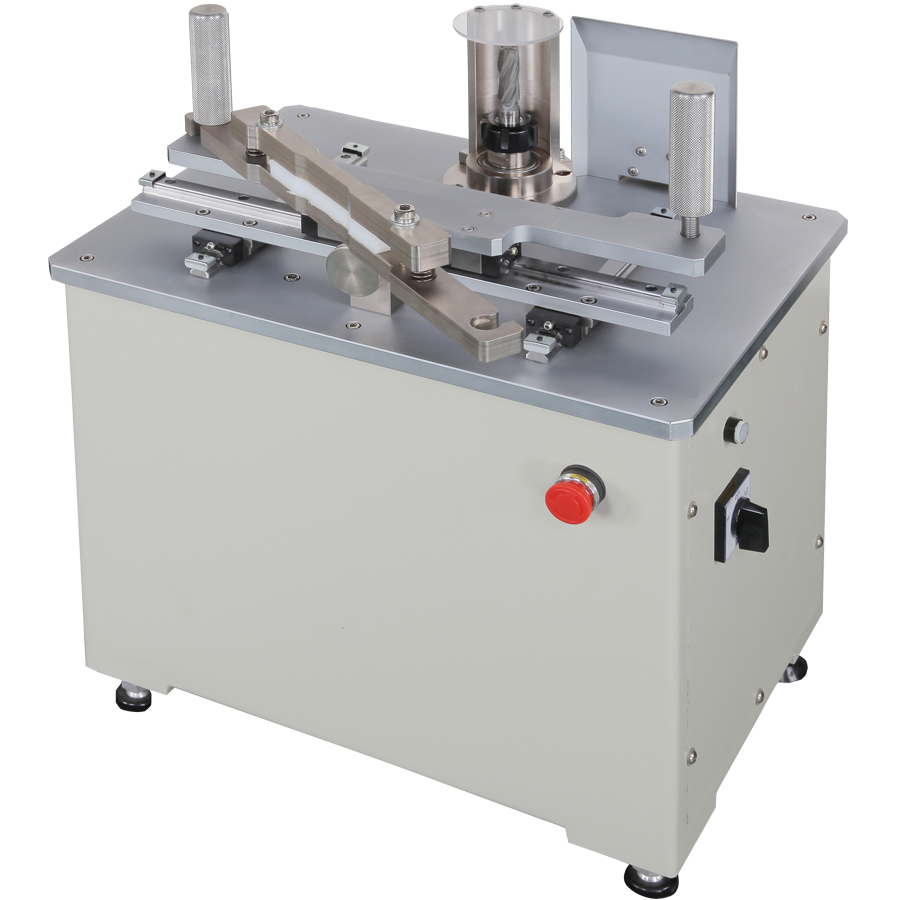

| Model | QC-603I |
|---|---|
| Material | Hardness of polymer specimen |
| Horse power | DC Motor 600W |
| Cutting speed | High speed 3600 RPM，Low speed 1800 RPM |
| Specimen thickness | 2 ~ 15 mm |
| Minimum cutting R angle | R＝6 mm |
| Accessories | 1.With one dumbbell shape cutter, customized shape is also acceptable but cannot be wider than 100mm and longer than 250mm. 2.With transparent protection cover. 3.With cleaner to keep it clean when operating. 4.Equipped with track to increase the stability, safety and fluency. |
| Power | Single phase110V or 220V((Designate) |
| Dimension | 47 × 40 × 45 cm (W x D x H) |
| Weight | 60 kg |
