Seiring dengan perubahan ketinggian air, tekanan air diukur menggunakan osilator kuarsa, yang menghitung ketinggian air dari frekuensi osilasi. Pengukuran dengan akurasi tinggi, tanpa kesalahan konversi yang disebabkan oleh perubahan sekuler yang biasa terlihat pada diafragma. Memiliki rentang pengukuran yang luas, dari 10 meter hingga 70 meter, sangat cocok untuk pemantauan ketinggian air pada sungai dan bendungan.
■ Pengukuran akurasi tinggi dengan osilator kuarsa
■ Pemasangan yang mudah pada revetment dan struktur
■ Perawatan dan pengelolaan yang sederhana dan mudah
■ Rentang pengukuran yang lebih luas
Quartz Sensor
Model | QS-10(measuring range 0 to 10m) QS-20(measuring range 0 to 20m) QS-30(measuring range 0 to 30m) QS-50(measuring range 0 to 50m) QS-70(measuring range 0 to 70m) |
Accuracy | ±0.05%FS ±0.02%FS:QS-H□□ ±0.01%FS:QS-S□□(QS-70 not allowed) |
Temperature coefficient at 0 point | ±0.0007% FS/℃ |
Temperature sensitivity coefficient | ±0.0049% FS/℃ |
Overload resistance | 120%FS |
Power supply | DC12V(10.5 to 16.5V)(supplied from the Water level coder) |
Operating condition (temperature, humidity) | -10℃ to +70℃ (No freezing) |
Material | SUS316L or Titanium(for sea) |
Dimensions | 240 x φ60 mm |
Weight | Approx.3kg |
Cable | Dedicated cable(Sensor to Junction box) Max.200m |
Water Level Coder
Model | WLC3-Q|A|－|B|C|D|E|F|G|H| A) Sensor input 1: 1 sensor, 2: 2 sensors B) Analog output 0: No, 1: 4 to 20mA, 2: 0 to 5V, 3: 0 to 10mV C) BCD output 0: No, 1: 1 sensor, 2: 2 sensors D) Comparison output 0: No, 1: Yes E) Printer 0: No F) SD Card slot 0: No, 1: Yes G) Power supply D1: DC12V, A1: AC100V H) Serial output Blank: RS232C, R4: RS422 |
Display•Operation | LCD touch panel |
Processing functions | Average calculation None averaging Moving average 20 sec, 1 min, 5 min, 10 min(every 1 sec) or (every 2 sec) Weighted average 5 sec, 10sec, 15 sec (every 1 sec) Level setting -999.999m to +999.999m |
Input type | Quartz sensor(Frequency signal 28 to 44 kHz) |
Number of input | 2 channels(Max.) |
Power supply | Select from DC12V or AC100V 50/60Hz |

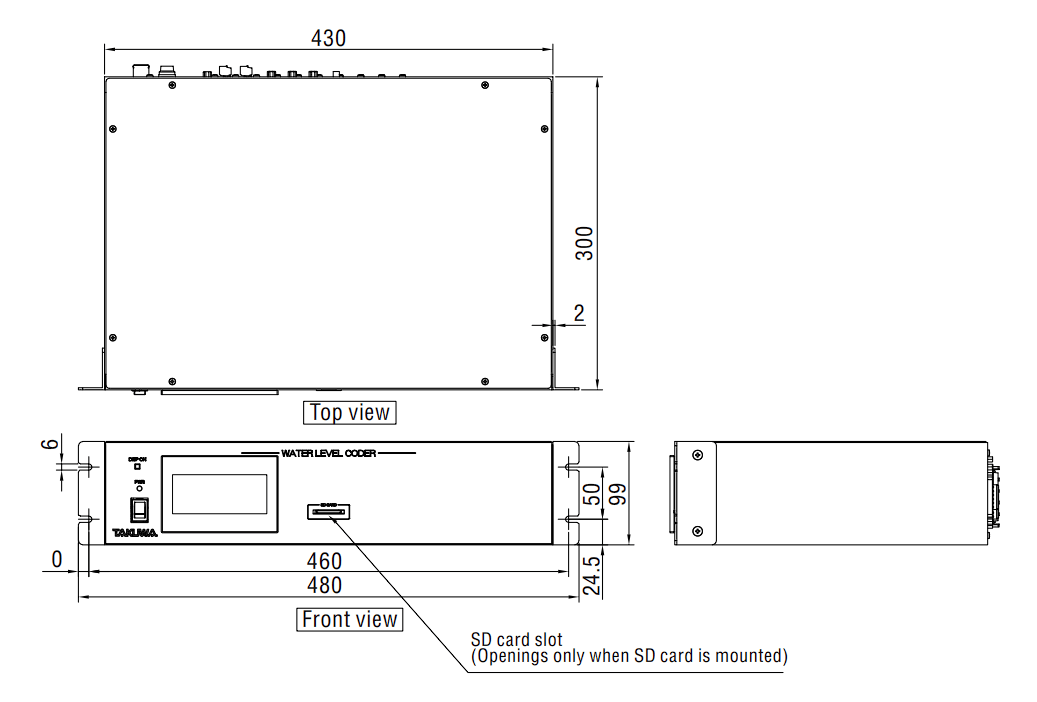

Dimensions | 480W x 99H x 300D mm (excluding protruding parts) |
Weight | 7kg or less |
Output | 1) Analog output 2 channels at 1 input, select from 4 to 20mA, 0 to 5V or 0 to 10mV 2) BCD output 2 channels(Max.) at 1 input, BCD output 5 digits with odd parity 3) Comparative output 8 points at 1 input (A,B,C,D≦H or A,B,C,D≧H), Non-voltage A contact (Photo MOS relay output) 4) Card recording Recording media： SD card(Maximum 2GB) Recording Interval： No, 1, 2, 5, 10, 15, 20, 30(min), 1, 2, 3, 6(hour) Recording capacity： 1 year or more(at 1 min recording) |
