| Item | Technical Specification | |
| Wind speed | Wind direction | |
| Range | 0-45m/s(current or voltage ouput);
0-70m/s(pulse,RS485,RS232 output) |
0-360° |
| Resolution | 0.1m/s | 1° |
| Accuracy | ±(0.3+0.03V)m/s ,V is current wind speed | ≤±3° |
| Acquisition Cycle | 3s | |
| Starting wind speed | 0.5m/s | |
| Limited wind speed | 75m/s | |
| Supply | 5V(only for digital output),12-24VDC | |
| Output Signal | RS485,4-20mA,0-5V,RS232,pulse(NPN,only for wind speed) | |
| Operating Temperature | -40℃-+70℃ | |
| Ingress Protection | IP65 | |

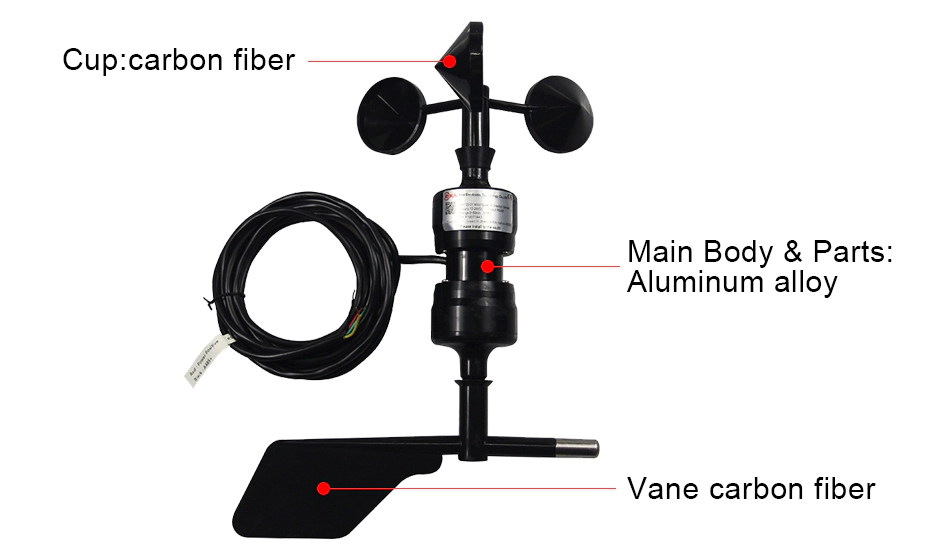

| Main material | Aluminum alloy and carbon fiber
Cups:PA, reinforced with carbon fibre, black Vane:PA, reinforced with fiberglass, white |
|
| Storage | 10-60℃@20%-90%RH | |
| Cable length | Default 2.5m,other length is optional | |

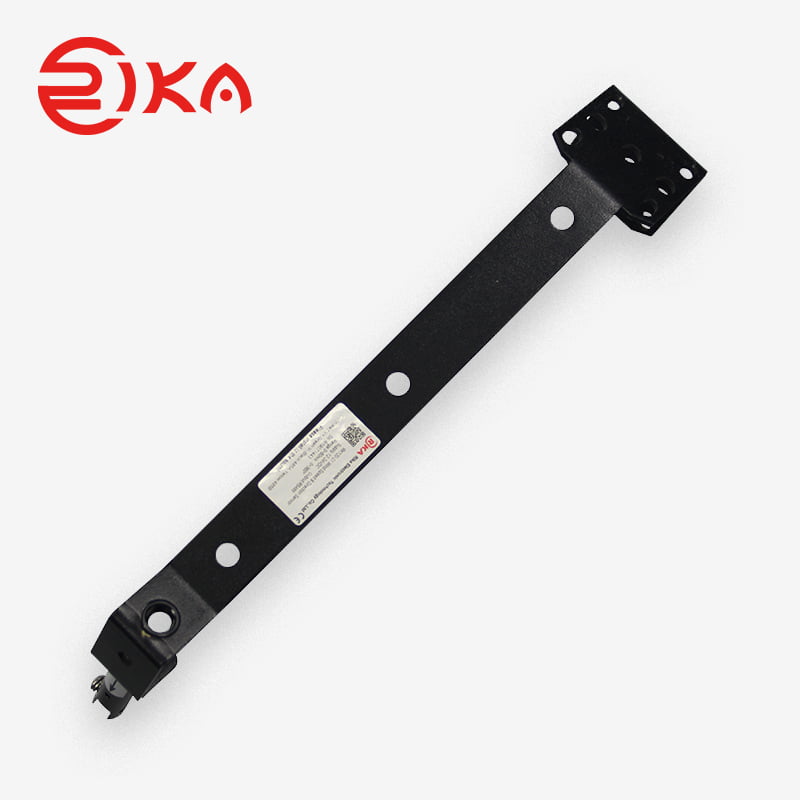

| Installation bracket | attached | |
| Weight(unpacked) | 700g | |
