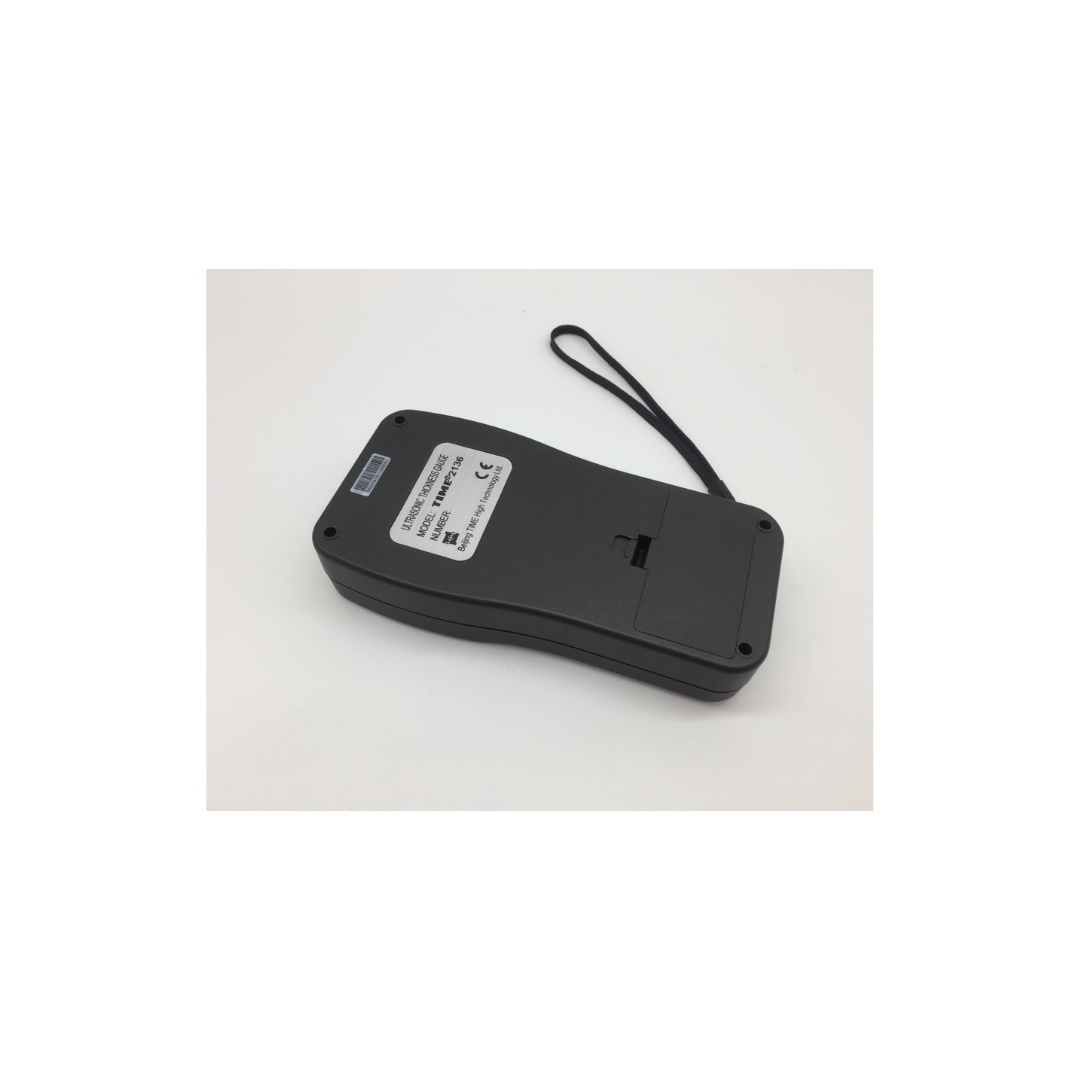

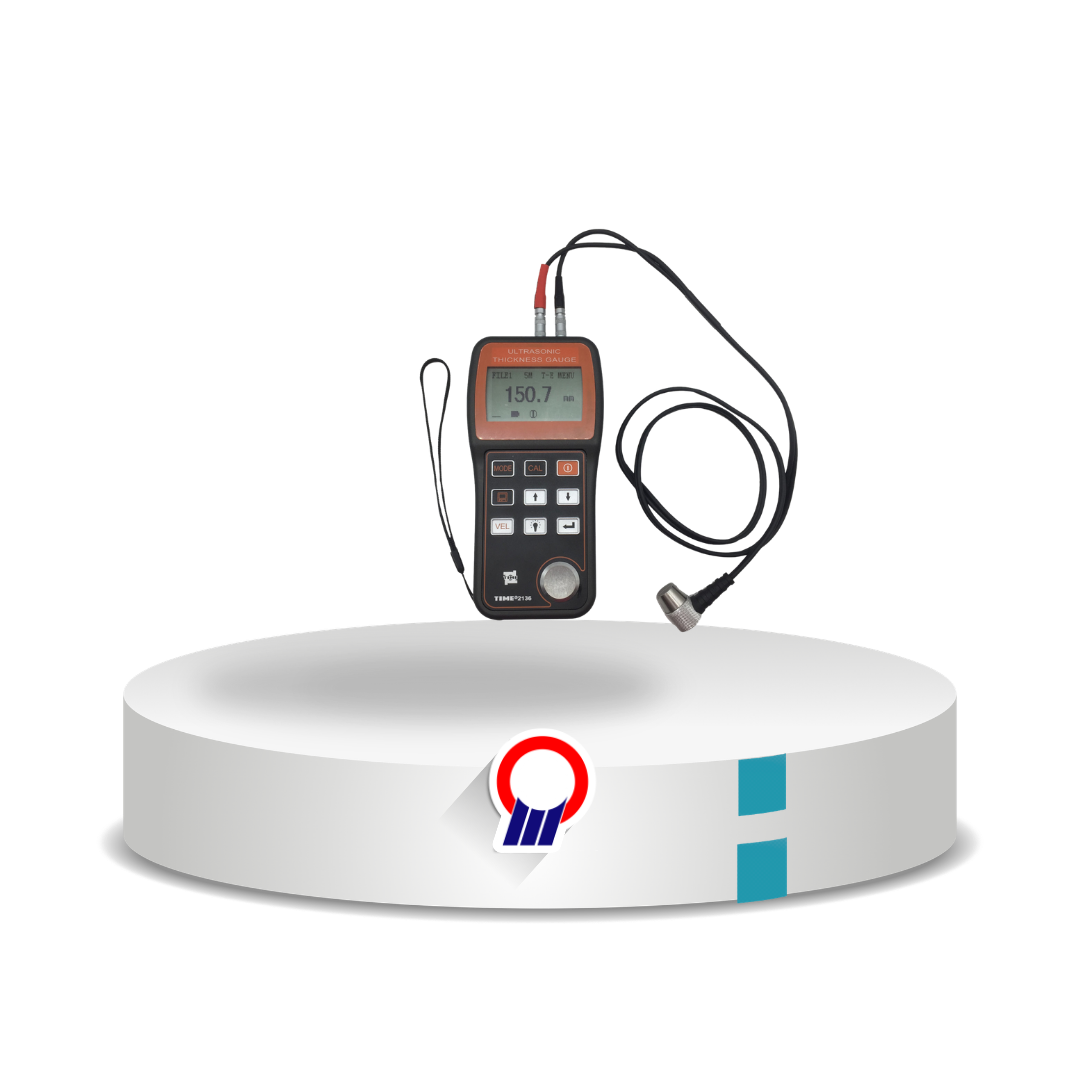

TIME 2136 Advanced Ultrasonic Thickness Gauge adalah alat ukur ketebalan ultrasonik yang dapat mengukur material meski berlapis cat atau coating. Memiliki resolusi hingga 0,001 mm dengan pengenalan probe otomatis, cocok untuk pipa, bejana tekan, pengecekan korosi kapal, serta inspeksi jalan dan jembatan.
● Mengukur ketebalan melalui lapisan cat (mode echo-echo).
● Pengenalan probe otomatis atau atur frekuensi manual.
● Mendukung probe TSTU17 & TSTU32.
● Koneksi ke printer/PC via RS232.
● Batas atas–bawah dengan alarm.
● Simpan 500 data.
● Resolusi 0,001 mm / 0,01 mm.
| Measuring Range (depends on probe) | Transducer 5PØ10: 1.2 – 200 mm (steel, T-E testing mode) 3 – 20 mm (steel, E-E mode)Transducer TSTU32: 5 – 300 mm (steel, T-E testing mode) |
| Display Resolution | 0.001 mm or 0.01 mm |
| Sound Speed | 1000 – 9999 m/s |
| Display | Backlight |
| Measuring Accuracy | ±1%H + 0.1 mm (H means the thickness of tested plate) |
| Data Output | RS232 |
| Calibration Plate | 4.0 mm (steel) |
| Power | AA batteries 1.5 V (2 pcs) |
| Unit Scales | mm / inch |
| Operating Temperature | -10 ~ 60℃ |
| Dimensions (mm) | 152 × 74 × 35 |
| Weight (g) | 220 |
