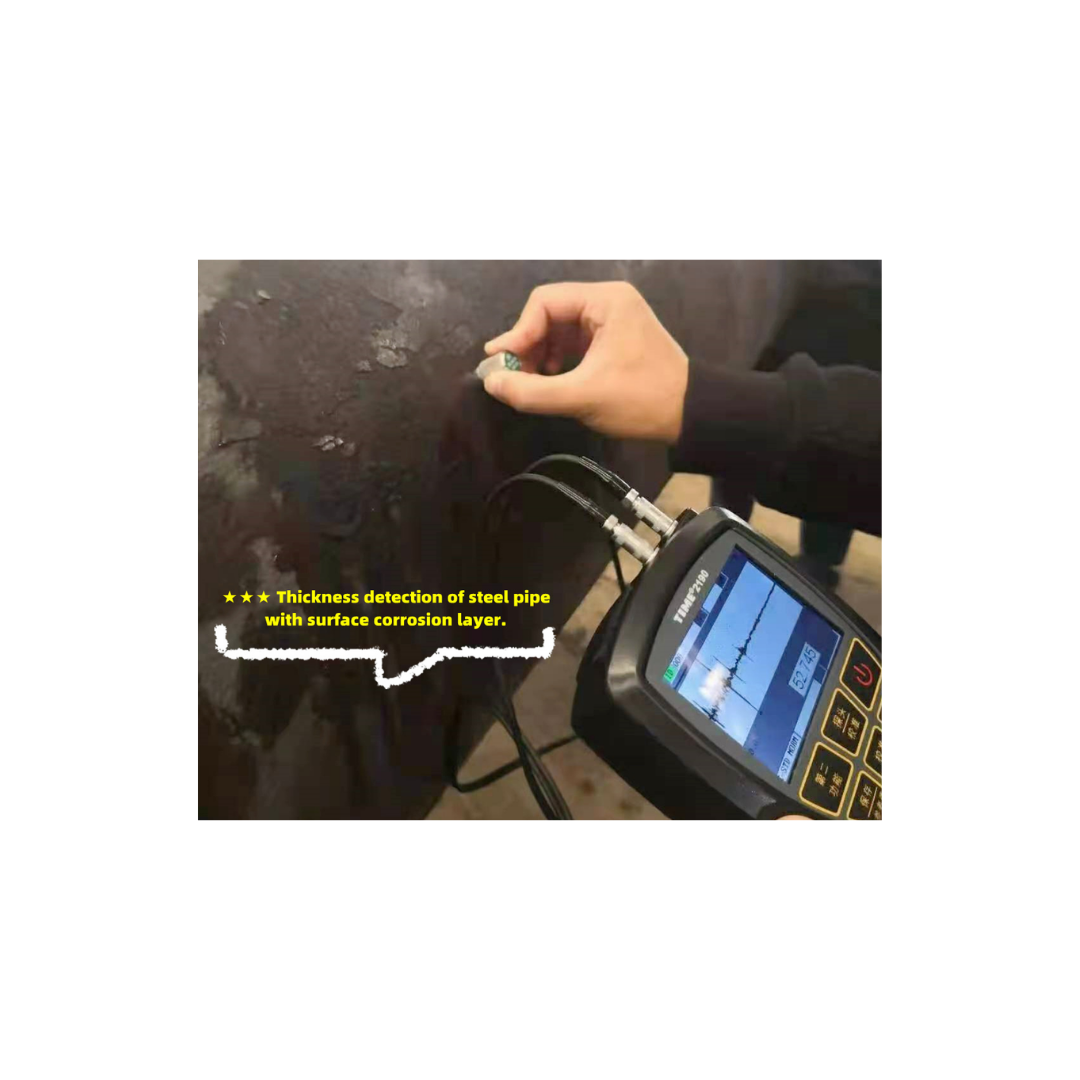

TIME 2190 Ultrasonic Thickness Gauge adalah alat ukur ketebalan ultrasonik high-end dengan metode pulse reflection dan fitur A-scan/B-scan. Mampu mengukur berbagai material secara non-destruktif, cocok untuk inspeksi ketebalan dan korosi pada pipa, pelat, dan bejana di berbagai industri.

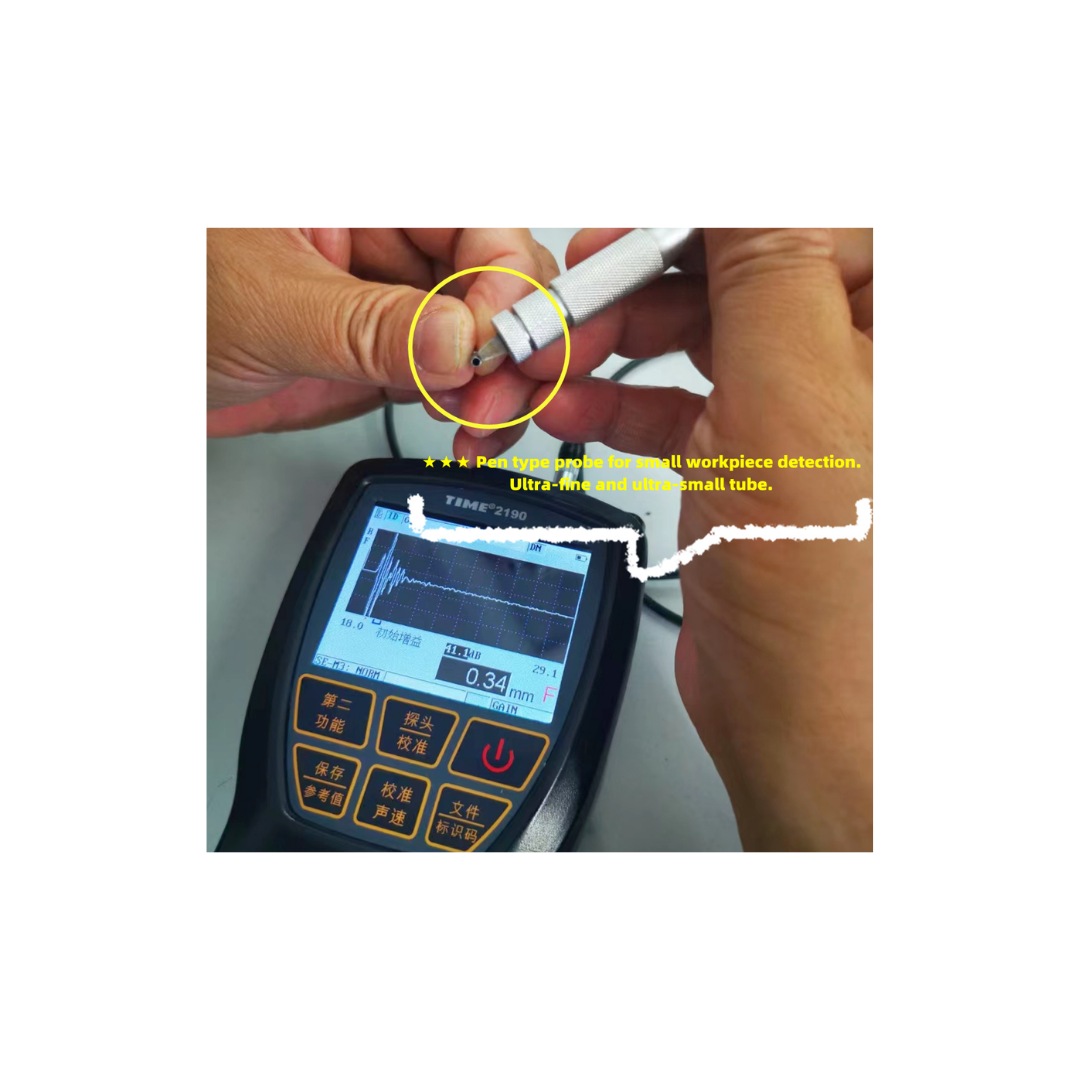

● A-scan untuk analisis echo, kompatibel berbagai probe.

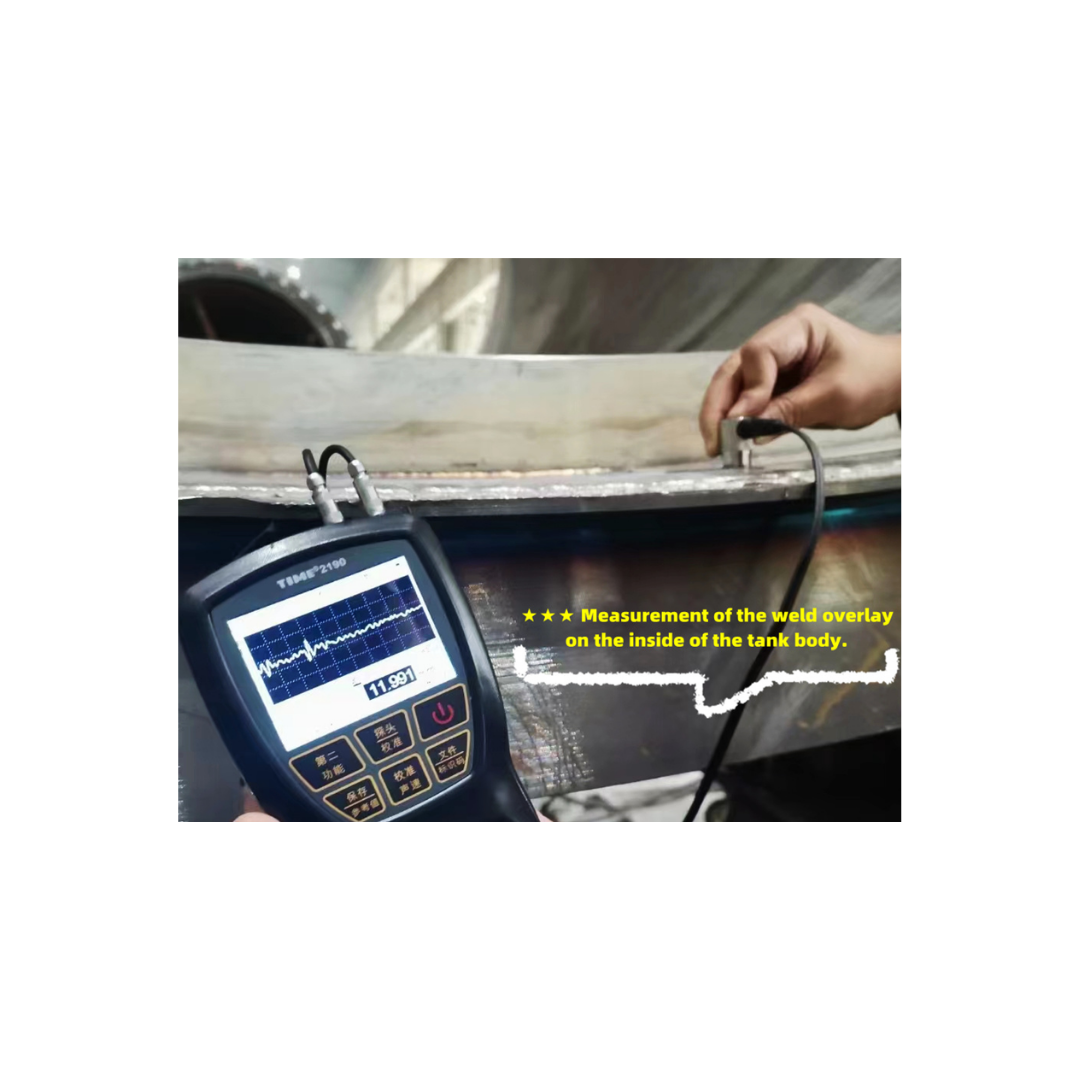

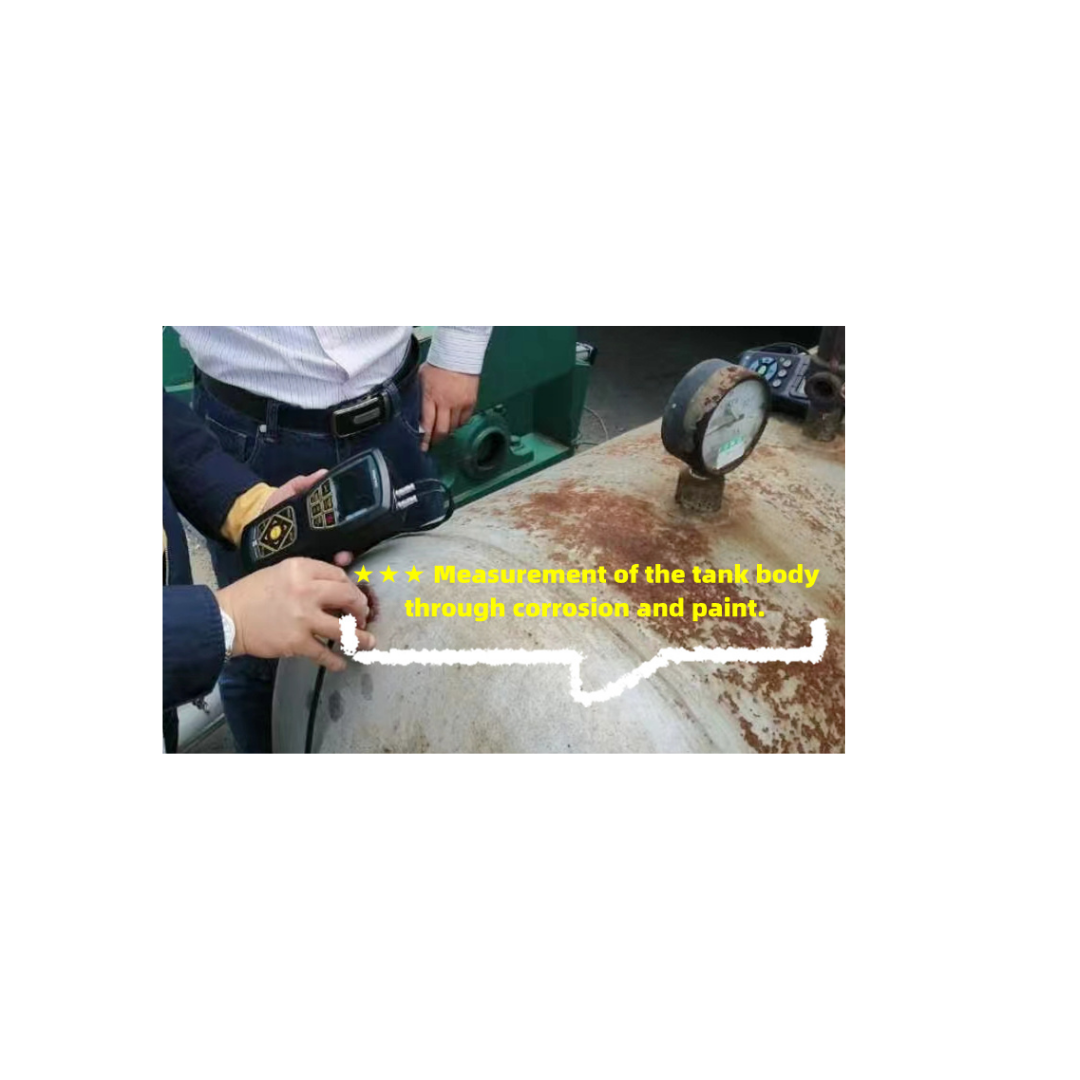

● Echo-echo & thru-coat untuk ukur ketebalan tanpa terpengaruh coating.
● Penguatan sinyal otomatis & pengukuran cepat hingga 20x/detik.
● Alarm batas atas–bawah dengan mode diferensial, max, dan min.
● Simpan hingga 500.000 data dan waveform.
| Measuring Range | 0.20 – 500 mm (depend on probe) |
| Display Resolution | 0.001 mm, 0.01 mm or 0.1 mm |
| Sound Velocity Range | 508 m/s – 18699 m/s |
| Repeatability | 5M probe and above: 0.03 mm 2M probe and below: 0.1 mm |
| Display Screen | Color TFT LCD, 320 × 240 pixels |
| Gain Range | 0 – 99 dB (1 dB step) |
| Pulse Generator | Adjustable Square Wave Pulse Generator |
| Emission Voltage | 60 V, 110 V, 150 V, 200 V optional |
| Emission Pulse Width | Varies with transducer frequency |
| Frequency Range | 0.5 MHz – 20 MHz |
| Measurement Rate | Standard (4 Hz), Fast (20 Hz) |
| Transducer Settings | 10 sets of fixed setting and 22 sets of custom setting |
| Data Storage | 500 data files, each capable of storing 1000 measurements and waveforms |
| Interface | USB |
| Power | Three AA batteries or NiMH batteries |
| Working Temperature | 0 ~ 40℃ |
| Weight (g) | 360 g |
| Dimensions (mm) | 187 × 87 × 43 mm |
